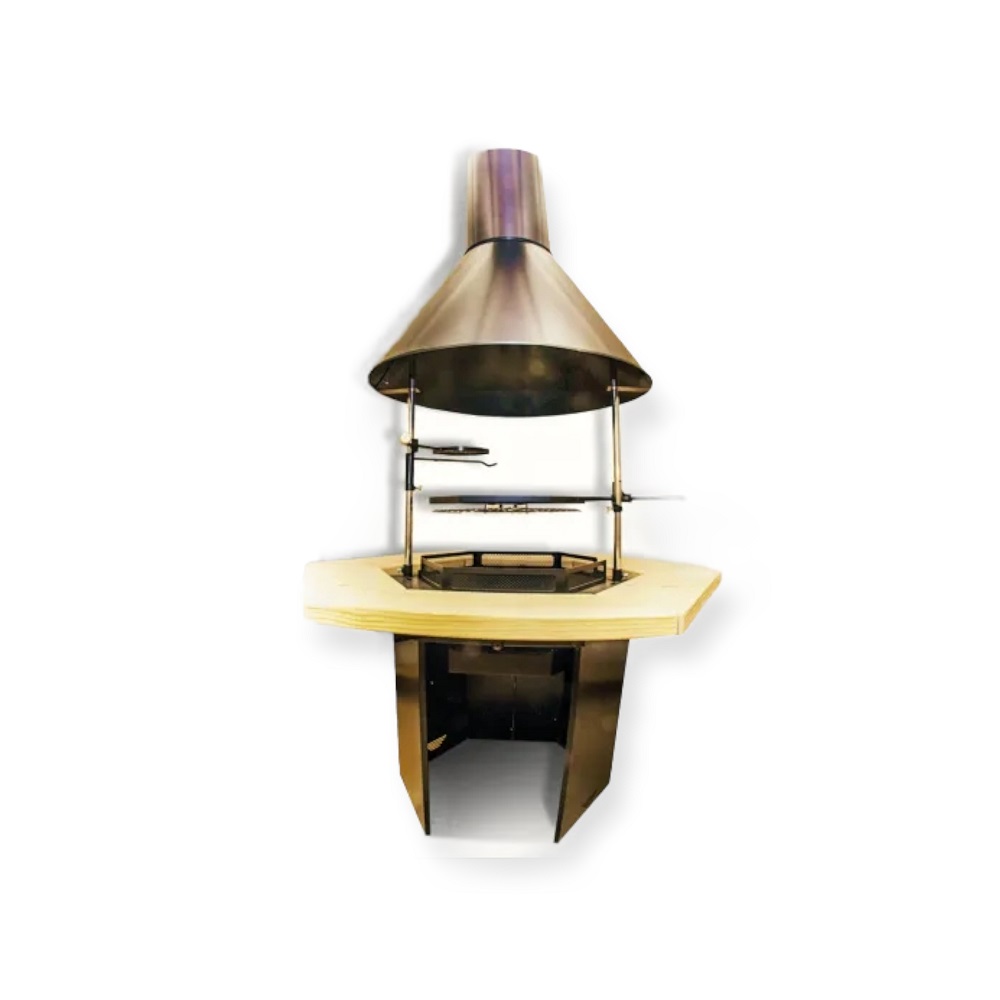

BBQ de Luxe

Grill with a table fitted around and extendable
chimney (2 grates and grill table’s safety fence incl.):
Grill body diagonal – 778 mm
Height from the ground to the table top – 644 mm
Fire box diameter – 800 mm
Table diameter – 1400 mm
Two vertical pipes
Smoke hood diameter – 899 mm
Smoke pipe length – 2 x 1000 mm
Smoke pipe diameter – 304 mm and 299 mm
2 Rain collars and rain cap
Large grate designed for grilling vegetables, meat and
fish
Small grate for coffee pot
Hook for the pot

Grill body is produced from 1 mm, fire box and
grate handles from 2 mm; grate handles pins
from 4 mm cold rolled sheet steel; ash tray
(grates) from 5 mm Corten steel. Grate stands
(pipes) are produced from stainless steel.
Smoke hood is produced from 0,9 mm
galvanized steel. Grill and chimney are powder
coated with heat resistant black matt paint
(RAL 9005), fire box and grates can withstand
up to 400°C.
